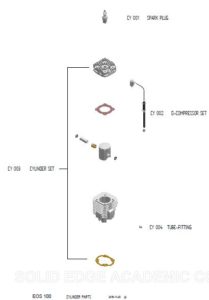

CYLINDER ASSY
|
||
|
PART NUMBER
|
PART DESCRIPTION
|
PRICE
|
|
CY 001
|
SPARK PLUG
|
$5
|
|
CY 002
|
DE-COMPRESSOR – SET
|
$125
|
|
CY 003
|
CYLINDER SET
|
$525
|
|
CY 004
|
TUBE FITTING
|
8
|
|
CY 005
|
CYLINDER GASKET SET
|
30
|
|
CY 006
|
PISTON
|
$145
|
|
PART NUMBER
|
PART DESCRIPTION
|
PRICE
|
|

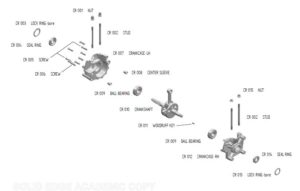

CR 001
|
HEXAGON NUT
|
$10
|
|
CR 002
|
STUD
|
$8
|
|
CR 003
|
LOCKING RING (bore)
|
$6
|
|
CR 004
|
SEAL RING
|
$18
|
|
CR 005
|
CYLINDER SCREW
|
$5
|
|
CR 006
|
CYLINDER SCREW
|
$5
|
|
CR 007
|
CRANKCASE – LH
|
$395
|
|
CR 008
|
CENTER SLEEVE
|
$5
|
|
CR 009
|
BALL BEARING
|
$45
|
|
CR 010
|
CRANKSHAFT
|
$295
|
|
CR 011
|
WOODRUFF KAY
|
$5
|
|
CR 012
|
CRANKCASE – RH
|
$395
|
|
CR 013
|
LOCKING RING (bore)
|
$5
|
|
CR 014
|
SEAL RING
|
$20
|
|
CR 015
|
HEXAGON NUT
|
$7
|
|
PART NUMBER
|
PART DESCRITION
|
PRICE
|
|

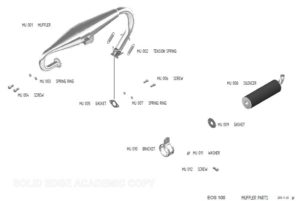

MU 001
|
MUFFLER
|
$425
|
|
MU 002
|
TENSION SPRING
|
$25
|
|
MU 003
|
SPRING RING
|
$5
|
|
MU 004
|
CYLINDER SCREW
|
$5
|
|
MU 005
|
GASKET
|
$15
|
|
MU 006
|
CYLINDER SCREW
|
$5
|
|
MU 007
|
LOCKING SPRING
|
$5
|
|
MU 008
|
SILENCER
|
$175
|
|
MU 009
|
GASKET
|
$25
|
|
MU 010
|
BRACKET
|
$40
|
|
MU 011
|
WASHER
|
$5
|
|
MU 012
|
CYLINDER SCREW
|
$8
|
|
MU 013
|
EXHAUST ASSY
|
$615
|
|
PART NUMBER
|
PART DESCRIPTION
|
PRICE
|
|

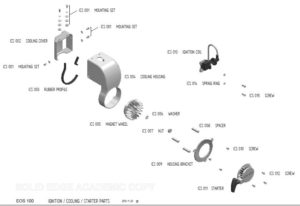

ICS 001
|
MOUNTING SET
|
$75
|
|
ICS 002
|
COOLING COVER
|
$145
|
|
ICS 003
|
RUBBER PROFILE
|
$20
|
|
ICS 004
|
COOLING HOUSING
|
$285
|
|
ICS 005
|
MAGNET WHEEL
|
$75
|
|
ICS 006
|
WASHER
|
$5
|
|
ICS 007
|
HEXAGON NUT
|
$7
|
|
ICS 008
|
SPACER
|
$25
|
|
ICS 009
|
HOUSING BRACKET
|
$155
|
|
ICS 010
|
COUNTER SUNK SCREW
|
$5
|
|
ICS 011
|
STARTER
|
$145
|
|
ICS 011A
|
STARTER NEW
|
$215
|
|
ICS 012
|
CYLINDER SCREW
|
$5
|
|
ICS 013
|
IGNITION COIL
|
$75
|
|
ICS 014
|
SPRING RING
|
$5
|
|
ICS 015
|
CYLINGR SCREW
|
$5
|
|
PART NUMBER
|
PART DESCRITION
|
PRICE
|
|

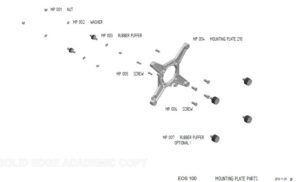

MP 001
|
NUT
|
$5
|
|
MP 002
|
WASHER
|
$3
|
|
MP 003
|
RUBBER PUFFER
|
$25
|
|
MP 004
|
MOUNTING PLATE
|
$435
|
|
MP 005
|
SCREW
|
$5
|
|
MP 006
|
SCREW
|
$5
|
|
MP 007
|
RUBBER PUFFER
|
$25
|
|
PART NUMBER
|
PART DESCRIPTION
|
PRICE
|
|

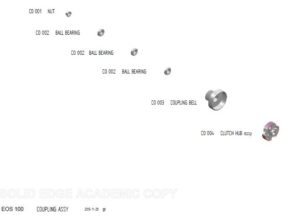

CO 001
|
NUT
|
$28
|
|
CO 002
|
BALL BEARING
|
$20
|
|
CO 003
|
COUPLING BELL
|
$185
|
|
CO 004
|
CLUCHT HUB ASSY
|
$185
|
|
PART NUMBER
|
PART DESCRIPTION
|
PRICE
|
|

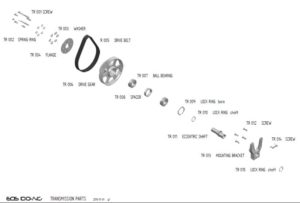

TR 001
|
CYLINDER SCREW
|
$10
|
|
TR 002
|
SPRING RING
|
$5
|
|
TR 003
|
WASHER
|
$2
|
|
TR 004
|
FLANGE
|
$85
|
|
TR 005
|
DRIVE BELT (Micro V – Belt)
|
$65
|
|
TR 006
|
DRIVE GEAR
|
$300
|
|
TR 007
|
BALL BEARING
|
$25
|
|
TR 008
|
SPACER
|
$25
|
|
TR 009
|
LOOK RING (Bore)
|
$10
|
|
TR 010
|
LOOK RING (Shaft)
|
$10
|
|
TR 011
|
ECENTRIC SHAFT
|
$85
|
|
TR 012
|
COUNTER SUNK SCREW
|
$5
|
|
TR 013
|
MOUNTING BRACKET
|
$215
|
|
TR 014
|
CYLINDER SCREW
|
$5
|
|
TR 015
|
LOOK RING (Shaft)
|
$5
|
|
TR 016
|
PROPELLER CENTRIC HUB
|
$50
|
|
PART NUMBER
|
PART DESCRIPTION
|
PRICE
|
|

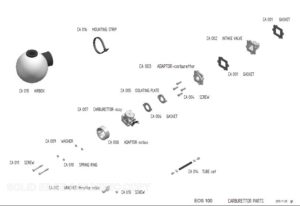

CA 001
|
GASKET
|
$10
|
|
CA 002
|
INTAKE VALVE
|
$95
|
|
CA 003
|
ADAPTOR – Carburetor
|
$120
|
|
CA 004
|
COUNTER SUNK SCREW
|
$5
|
|
CA 005
|
ISOLATING PLATE
|
$50
|
|
CA 006
|
GASKET – Carburetor
|
$5
|
|
CA 007
|
CARBURETOR ASSY
|
$300
|
|
CA 008
|
ADAPTOR – Airbox
|
$25
|
|
CA 009
|
WASHER
|
$3
|
|
CA 010
|
SPRING WASHER
|
$3
|
|
CA 011
|
CYLINDER SCREW
|
$5
|
|
CA 012
|
BRACKET – Throttle Cable
|
$30
|
|
CA 013
|
FLAT HEADED SCREW
|
$3
|
|
CA 014
|
TUBE – Set
|
$20
|
|
CA 015
|
AIRBOX
|
$155
|
|
CA 015 B
|
AIRBOX – Black
|
$160
|
|
CA 016
|
MOUNTING STRIP
|
$3
|
